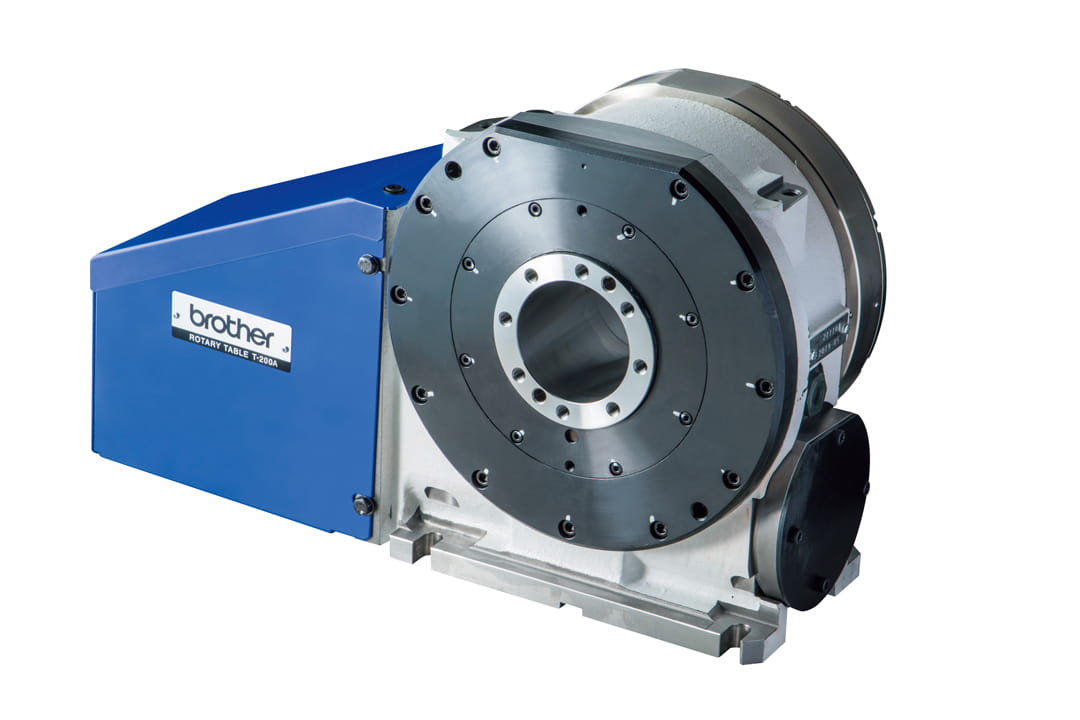

Galerie
Basis-Spezifikationen
| 0 |
|---|
Spezifikationen
| Type | Right-handed, Left-handed*1 |
|---|---|
| Through hole diameter | 70H7mm /2.8H7inch |
| Center height | 170mm /6.7inch |
| Gear ratio | 1/20 |
| Maximum speed | 100min‒1 (50min‒1*2) |
| Bi-directional positioning accuracy (ISO230-2 compliant) | 20s or less |
| Bi-directional positioning repeatability (ISO230-2 compliant) | 10s or less |
| Indexing accuracy*3 | 10s or less |
| Repeatability*3 | 4s or less |
| Maximum loading capacity | 100kg /220lbs (200kg / 440lbs *4) |
| Allowable work inertia | 1.0kg・m2 /23.7lbs・ft2 (4.0kg・m2 /94.8lbs・ft2 *2) |
| Allowable unbalanced load | 5.0kg・m /36.2ft・lbs |
| Clamp method | Pneumatic |
| Clamp torque | 280N・m /207ft・lbs (at 0.5Mpa) |
| Maximum holding torque *5 | 720N・m /531ft・lbs (at 0.5MPa) |
| Product weight | 61kg /134lbs |
| Applicable models | S300X2 (X1) / S500X2 (X1) / S700X2 (X1) / S1000X1 / W1000Xd1 *6 / R450X2 (X1) / R650X2 (X1) / F600X1 |
