SPEEDIO

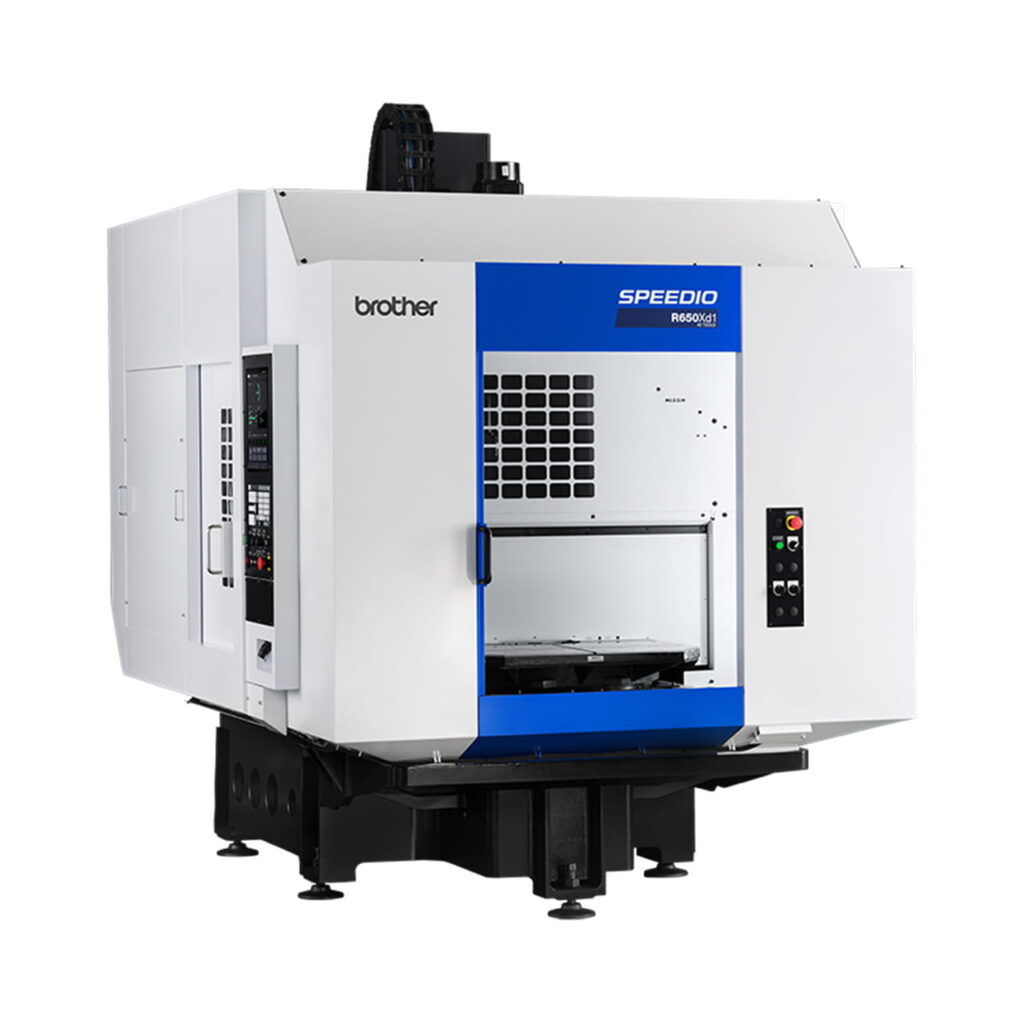

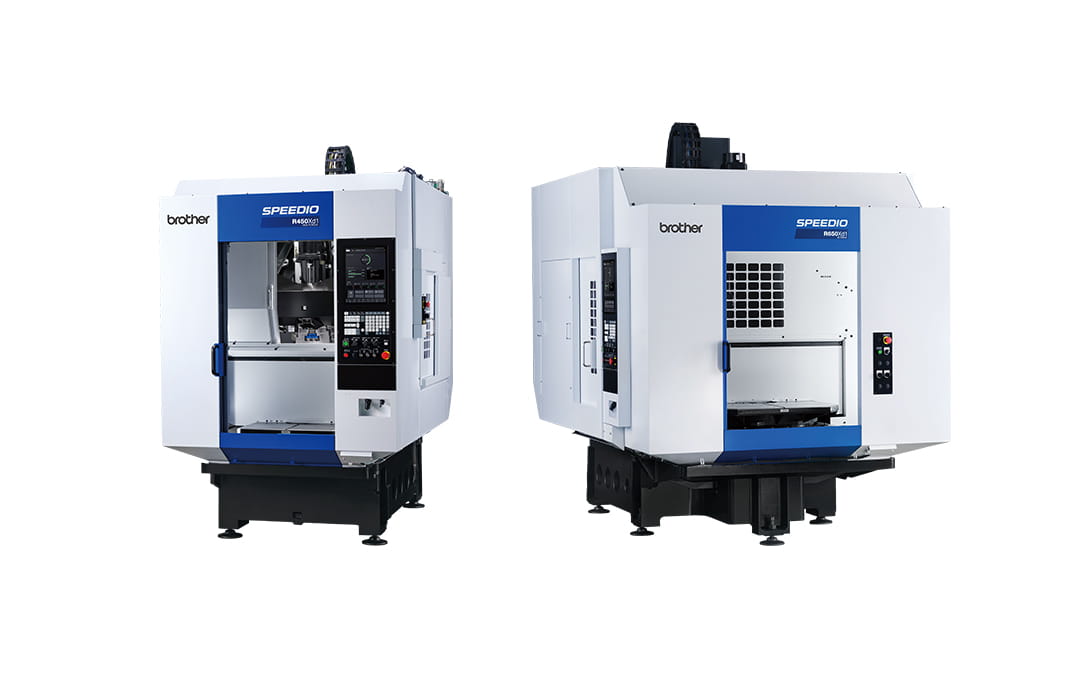

SPEEDIO R650Xd1 40tools

Pallet Changing Compact Machining Center

Pallet Changer
40 Tool Magazine

Galerie

Basis-Spezifikationen

Max. spindle speed [min⁻¹]	10,000/ (Optional) 16,000/ (Optional) 10,000 high-torque
Travels [mm (inch)]	X: 650 Y: 400 Z: 435
Tool storage capacity [pcs.]	40
Rapid traverse rate (XYZ axes) [m/min (inch/min)]	50 x 50 x 50
Required floor space [mm (inch)]	2,145 x 3,029
BT dual contact spindle(BIG-PLUS)	Optional
Coolant Through Spindle(CTS)	Optional
Low table	Optional

Spezifikationen

item	item	item	R450Xd1 / R450Xd1 RD *12	R650Xd1 / R650Xd1 RD *12 14/22/28 tool magazine	R650Xd1 / R650Xd1 RD *12 40-tool magazine
CNC unit	CNC unit	CNC unit	CNC-D00	CNC-D00	CNC-D00
Travels	X axis [mm (inch)]	X axis [mm (inch)]	450 (17.7)	650 (25.6)	650 (25.6)
Travels	Y axis [mm (inch)]	Y axis [mm (inch)]	320 (12.6) *7	400 (15.7)	400 (15.7)
Travels	Z axis [mm (inch)]	Z axis [mm (inch)]	305 (12.0)	305 (12.0)	435 (17.1)
Travels	Distance between table top and spindle nose end [mm (inch)]	Distance between table top and spindle nose end [mm (inch)]	200-505 (7.9-19.9) [280-585 (11.0-23.0) *8	250-555 (9.8-21.8) [350-655 (13.8-25.8) *8]	250-685 (9.8-27.0) [350-785 (13.8-30.9) *8]
Table	Work area size [mm (inch)]	Work area size [mm (inch)]	One face 600 x 300 (23.6 x 11.8)	One face 800 x 400 (31.5 x 15.7)	One face 800 x 400 (31.5 x 15.7)
Table	Max.loading capacity (uniform load) [kg (lbs)]	Max.loading capacity (uniform load) [kg (lbs)]	One face 120 (265) [200 (441) *6]	One face 200 (441) [300 (661) *6]	One face 200 (441) [300 (661) *6]
Table	Position time [sec.]	Position time [sec.]	2.7 *11	3.1 *11	3.1 *11
Spindle	Spindle speed [min-1]	Spindle speed [min-1]	10,000min-1 specifications: 1 - 10,000 16,000min-1 specifications(Optional): 1 - 16,000 10,000min-1 high-torque specifications(Optional): 1 - 10,000	10,000min-1 specifications: 1 - 10,000 16,000min-1 specifications(Optional): 1 - 16,000 10,000min-1 high-torque specifications(Optional): 1 - 10,000	10,000min-1 specifications: 1 - 10,000 16,000min-1 specifications(Optional): 1 - 16,000 10,000min-1 high-torque specifications(Optional): 1 - 10,000
Spindle	Speed during tapping [min-1]	Speed during tapping [min-1]	MAX. 6,000	MAX. 6,000	MAX. 6,000
Spindle	Tapered hole	Tapered hole	7/24 tapered No.30	7/24 tapered No.30	7/24 tapered No.30
Spindle	BT dual contact system (BIG-PLUS)	BT dual contact system (BIG-PLUS)	Optional	Optional	Optional
Spindle	Coolant Through Spindle (CTS)	Coolant Through Spindle (CTS)	Optional	Optional	Optional
Feed rate	Rapid traverse rate (XYZ-area) [m/min (inch/min)]	Rapid traverse rate (XYZ-area) [m/min (inch/min)]	50 x 50 x 50 (1,969 x 1,969 x 1,969)	50 x 50 x 50 (1,969 x 1,969 x 1,969)	50 x 50 x 50 (1,969 x 1,969 x 1,969)
Feed rate	Cutting feed rate [mm/min (inch/min)]	Cutting feed rate [mm/min (inch/min)]	X, Y, Z axis: 1 - 30,000 (0.04 - 1,181) *9	X, Y, Z axis: 1 - 30,000 (0.04 - 1,181) *9	X, Y, Z axis: 1 - 30,000 (0.04 - 1,181) *9
ATC unit	Tool shank type	Tool shank type	MAS-BT30	MAS-BT30	MAS-BT30
ATC unit	Pull stud type *4	Pull stud type *4	MAS-P30T-2	MAS-P30T-2	MAS-P30T-2
ATC unit	Tool storage capacity [pcs.]	Tool storage capacity [pcs.]	14/22/28	14/22/28	40
ATC unit	Max.tool length [mm (inch)]	Max.tool length [mm (inch)]	200 (7.9)	200 (7.9)	250 (9.8)
ATC unit	Max.tool diameter [mm (inch)]	Max.tool diameter [mm (inch)]	80 (3.1)	80 (3.1)	55 (2.1) / 125 (4.9) No adjacent tool
ATC unit	Max.tool weight [kg (lbs)] *1	Max.tool weight [kg (lbs)] *1	3.0 (6.6)	3.0 (6.6)	4.0 (8.8)
ATC unit	Tool selection method	Tool selection method	Random short cut method	Random short cut method	Double arm method (random closet path)
Tool change time *5	Tool To Tool [sec.]	Tool To Tool [sec.]	0.6 / 0.7 (14-tool / 22 or 28 tool)	0.6 / 0.8 (14-tool / 22 or 28 tool)	0.9
Tool change time *5	Chip To Chip [sec.]	Chip To Chip [sec.]	1.3 / 1.5 (14-tool / 22 or 28 tool)	1.4 / 1.5 (14-tool / 22 or 28 tool)	2.5
Electric motor	Main spindle motor (10 min/continuous)[kW] *2	Main spindle motor (10 min/continuous)[kW] *2	10,000min-1 specifications: 10.1/7.0 16,000min-1 specifications(Optional): 7.4/5.1 10,000min-1 high-torque specifications(Optional): 12.8/9.2	10,000min-1 specifications: 10.1/7.0 16,000min-1 specifications(Optional): 7.4/5.1 10,000min-1 high-torque specifications(Optional): 12.8/9.2	10,000min-1 specifications: 10.1/7.0 16,000min-1 specifications(Optional): 7.4/5.1 10,000min-1 high-torque specifications(Optional): 12.8/9.2
Electric motor	Axis feed motor [kW]	Axis feed motor [kW]	X, Y axis: 1.0, Z axis: 1.8	X, Y axis: 1.0, Z axis: 1.8	X, Y axis: 1.0, Z axis: 1.8
Power source	Power supply	Power supply	AC 200 to 230 V±10％, 3-phase, 50/60Hz±2%	AC 200 to 230 V±10％, 3-phase, 50/60Hz±2%	AC 200 to 230 V±10％, 3-phase, 50/60Hz±2%
Power source	Power capacity (continuous) [kVA]	Power capacity (continuous) [kVA]	10,000min-1 specifications: 9.5 16,000min-1 specifications(Optional): 9.5 10,000min-1 high-torque specifications(Optional): 10.4	10,000min-1 specifications: 9.5 16,000min-1 specifications(Optional): 9.5 10,000min-1 high-torque specifications(Optional): 10.4	10,000min-1 specifications: 9.5 16,000min-1 specifications(Optional): 9.5 10,000min-1 high-torque specifications(Optional): 10.4
Power source	Air supply	Regular air pressure [MPa]	0.4 - 0.6 (recommended value: 0.5MPa *10)	0.4 - 0.6 (recommended value: 0.5MPa *10)	0.4 - 0.6 (recommended value: 0.5MPa *10)
Power source	Air supply	Required flow [L/min]	45	45	100
Machine dimensions	Height [mm (inch)]	Height [mm (inch)]	2,584 (101.7)	2,704 (106.5)	2,704 (106.5)
Machine dimensions	Required floor space *13 [with control unit door open] [mm (inch)]	Required floor space *13 [with control unit door open] [mm (inch)]	1,400 x 2,609 [3,448] (55.1 x 102.7 [135.7] )	1,830 x 3,029 [3,868] (72.0 x 119.3 [152.3] )	2,145 x 3,029 [3,868] (84.4 x 119.3 [152.3] )
Machine dimensions	Weight (including control unit, machine cover) [kg (lbs)]	Weight (including control unit, machine cover) [kg (lbs)]	2,750 (6,063)	3,550 (7,826)	4,150 (9,149)
Accuracy*3	Accuracy of bidirectional axis positioning (ISO230-2:1988) [mm (inch)]	Accuracy of bidirectional axis positioning (ISO230-2:1988) [mm (inch)]	0.006 - 0.020 (0.00024 - 0.00079)	0.006 - 0.020 (0.00024 - 0.00079)	0.006 - 0.020 (0.00024 - 0.00079)
Accuracy*3	Repeatability of bidirectional axis positioning (ISO230-2:2014) [mm (inch)]	Repeatability of bidirectional axis positioning (ISO230-2:2014) [mm (inch)]	Less than 0.004 (0.00016)	Less than 0.004 (0.00016)	Less than 0.004 (0.00016)
Front door	Front door	Front door	2doors	2doors	2doors
Standard accessories	Standard accessories	Standard accessories	Instruction Manual (DVD 1 set), leveling bolts (4 pcs.) [R650Xd1: 5 pcs.], leveling plate (4 pcs.) [R650Xd1: 5 pcs.]	Instruction Manual (DVD 1 set), leveling bolts (4 pcs.) [R650Xd1: 5 pcs.], leveling plate (4 pcs.) [R650Xd1: 5 pcs.]	Instruction Manual (DVD 1 set), leveling bolts (4 pcs.) [R650Xd1: 5 pcs.], leveling plate (4 pcs.) [R650Xd1: 5 pcs.]

Item	R450Xd1	R650Xd1
Type	0 deg./180 deg. turntable system	0 deg./180 deg. turntable system
Table dimension [mm (inch)]	One face 600 x 420 (23.6 x 16.5)	One face 800 x 535 (31.5 x 21.1)
Max. turning diameter [mm (inch)]	D1,020 (40.2) [D1,100 (43.3)] *14	D1,250 (49.2) [D1,300 (51.2)] *14
Max. jig height [mm (inch)]	300 (11.8) [380 (15.0)] *8	350 (13.8) [450 (17.7)] *8
Table work area size [mm (inch)]	One face 600 x 300 (23.6 x 11.8)	One face 800 x 400 (31.5 x 15.7)
Max. loading capacity [kg (lds)]	One face 120 (265) [200 (441)] *6	One face 200 (441) [300 (661)] *6
Rated table load inertia for turning axis [kg·m2]	One face 14.2 [23.5] *6	One face 35.8 [53.7] *6
Table turning system	AC servo motor(1kW) Worm gear(total speed reduction ratio:1/50)	AC servo motor(0.82kW) Worm gear(total speed reduction ratio:1/60)
Table position time	2.7 *11	3.1 *11
Table change repeatability [mm (inch)]	0.005 (0.0002) (in the X,Y, and Z axes directions 270(10.6) from the center of rotation)	0.005 (0.0002) (in the X,Y, and Z axes directions 335(13.2) from the center of rotation)

CNC model	CNC model	CNC-D00
Control axes	Control axes	7 axes (X, Y, Z, four additional axes)
Simultaneously controlled axes	Positioning	5 axes (X, Y, Z, A, B)
Simultaneously controlled axes	Interpolation	Linear: 4 axes (X, Y, Z, one additional axis) Circular: 2 axes Helical/Conical: 3 axes (X, Y, Z)
Least input increment	Least input increment	0.001mm、0.0001inch、0.001 deg.
Max.programmable dimension	Max.programmable dimension	±999999.999mm、±99999.9999inch
Display	Display	15-inch color LCD touch display
Memory capacity	Memory capacity	500 Mbytes, 3 Gbytes (optional) (Total capacity of program and data bank)
External communication	External communication	USB memory interface, Ethernet, RS232C (optional)
No.of registrable programs	No.of registrable programs	4,000 (Total capacity of program and data bank)
Program format	Program format	NC language, conversation (changed by parameter) Conversation from conversation program to NC language program available

Operation	Dry run Machine lock Program restart Rapid traverse override Cutting feed override Background editing Screen shot Operation level External input signal key Spindle override
Programming	Absolute / Incremental Inch / Metric Coordinate system setting Corner C / Corner R Rotational transformation Synchronized tap Subprogram Graphic display
Measurement	Automatic workpiece measurement *1 Tool length measurement
High speed and high accuracy	Machining parameter adjustment High-accuracy mode AIII High-accuracy mode BI (look-ahead 160 blocks) Backlash compensation High accuracy mode BII (Look-ahead 1,000 blocks, smooth path offset)
Monitoring	Machining load monitoring ATC monitoring Overload prediction Waveform display / Waveform output to memory card Heat expansion compensation system ll (X, Y, and Z axes) Production performance display Tool life / Spare tool
Maintenance	Tap return function Status log Alarm log Operation log Motor insulation resistance measurement Tool washing filter with filter clogging detection Breake load test
Automatic / Network	Computer remote OPC UA Auto notification Built-in PLC (LD/ST/FBD) CC-Link, master station CC-Link, remote device station PROFIBUS DP, slave DeviceNet, slave PROFINET, slave EtherNet/IP, slave
Energy saving	Automatic power off Standby mode Automatic coolant off Automatic work light off Chip shower off delay
Support apps	Adjust machine parameters ATC tool Tool life Waveform display Production performance Power consumption Recovery support Inspection PLC
Accessories	File viewer Notebook Calculator Register shortcut Display off
Functions limited to NC language	Menu programming Local coordinate system Expanded workpiece coordinate system One-way positioning Inverse time feed Programmable data input Tool length compensation Cutter compensation Scaling Mirror image External sub program call Macro Operation in tape mode Multiple skip function Submicron command 2 Interrupt type macro Rotary fixture offset Fixture coordinates setting 3 Involute interpolation
Functions limited to conversation	Operation program Schedule program Automatic tool selection Automatic cutting condition setting Automatic tool length compensation setting Automatic cutter compensation setting Automatic calculation of unknown number input Machining order control
