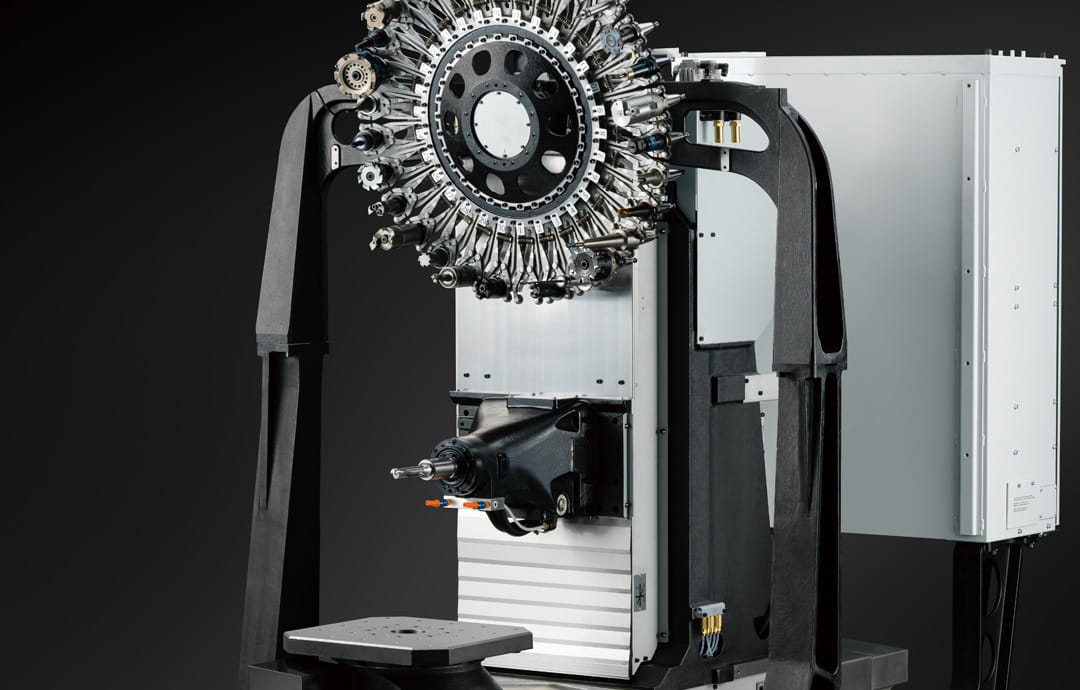

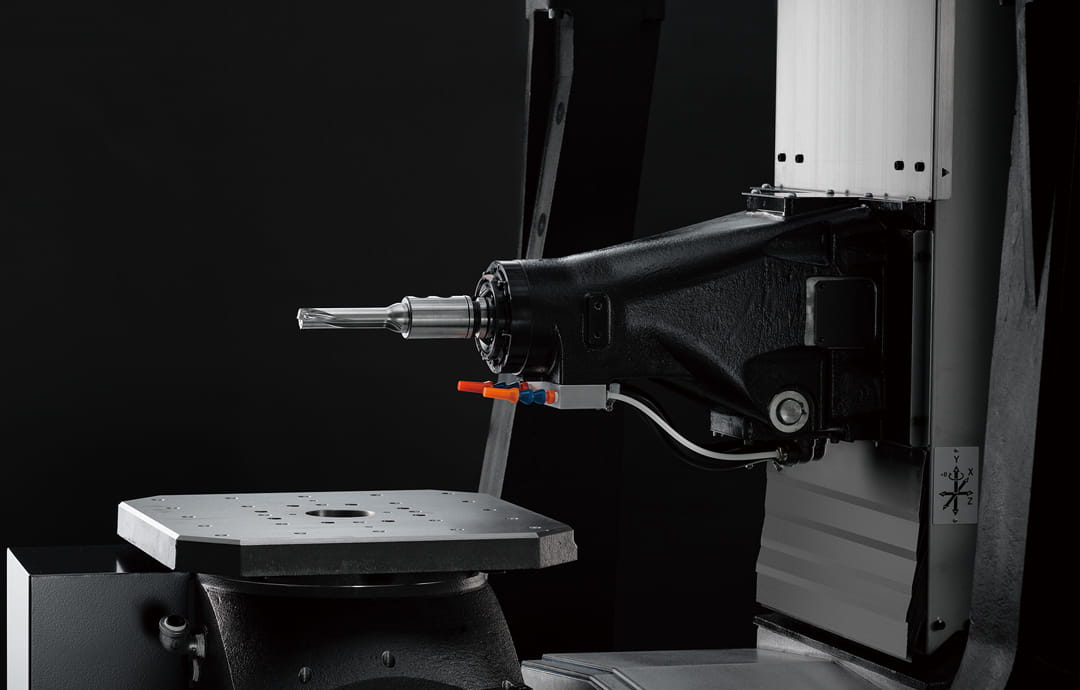

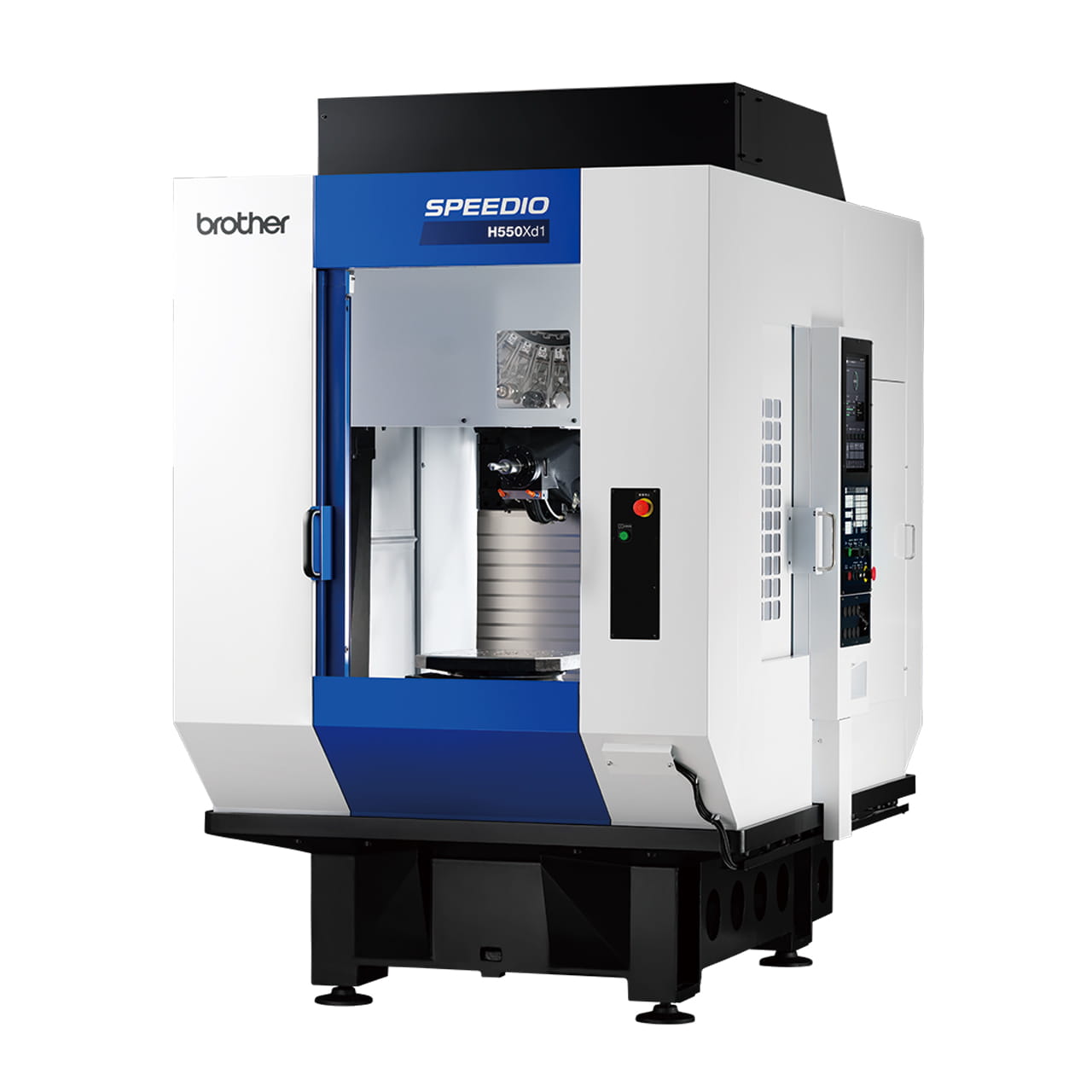

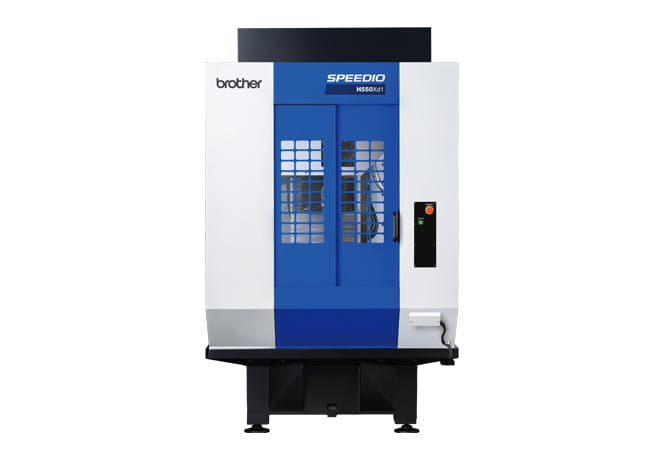

Galerie
Basis-Spezifikationen
| Max. spindle speed [min⁻¹] | 12,000/ (Optional) 20,000/ (Optional) 10,000 high-torque |
|---|---|
| Travels [mm (inch)] | X: 550(21.7) Y: 400(15.7) Z: 400(15.7) B(deg.): 360 |
| Tool storage capacity [pcs.] | 30 |
| Rapid traverse rate (XYZ axes) [m/min (inch/min)] | 50 x 50 x 56 (1,969 x 1,969 x 2,205) |
| Indexing feed rate [min⁻¹] | 100 |
| Required floor space [mm (inch)] | 1,557 x 2,743 [3,581] (61.3 x 108.0 [141.0]) |
| BT dual contact spindle(BIG-PLUS) | Optional |
| Coolant Through Spindle(CTS) | Optional |
Spezifikationen
| Item | Item | Item | H550Xd1 / H550Xd1 RD *8 |
|---|---|---|---|
| CNC Unit | CNC Unit | CNC Unit | CNC-D00 |
| Travels | X axis [mm (inch)] | X axis [mm (inch)] | 550 |
| Travels | Y axis [mm (inch)] | Y axis [mm (inch)] | 400 |
| Travels | Z axis [mm (inch)] | Z axis [mm (inch)] | 400 |
| Travels | B axis [deg.] | B axis [deg.] | 360 |
| Travels | Distance between table top and spindle center [mm (inch)] | Distance between table top and spindle center [mm (inch)] | 100 - 500 |
| Travels | Distance between table center and spindle nose end [mm (inch)] | Distance between table center and spindle nose end [mm (inch)] | 150 - 550 |
| Table | Work area size [mm (inch)] | Work area size [mm (inch)] | 400 x 400 |
| Table | Max.loading capacity [kg (lbs)] | Max.loading capacity [kg (lbs)] | 400 |
| Table | Max. table load inertia [kg・m2(lb・inch2)] | Max. table load inertia [kg・m2(lb・inch2)] | 3.4 (11,618) [5.4 (18,453)*10] |
| Spindle | Spindle speed [min-1] *13 | Spindle speed [min-1] *13 | 12,000min-1 specifications : 1 - 12,000 10,000min-1 high-torque specifications (optional): 1-10,000 20,000min-1 specifications (Optional) : 1 - 20,000 |
| Spindle | Speed during tapping [min-1] | Speed during tapping [min-1] | MAX. 6,000 |
| Spindle | Tapered hole | Tapered hole | 7/24 tapered No.30 |
| Spindle | BT dual contact spindle (BIG-PLUS) | BT dual contact spindle (BIG-PLUS) | Optional |
| Spindle | Coolant Through Spindle (CTS) | Coolant Through Spindle (CTS) | Optional |
| Feed rate | Rapid traverse rate (XYZ-area) [m/min (inch/min)] | Rapid traverse rate (XYZ-area) [m/min (inch/min)] | 50 x 56 x 56 |
| Feed rate | Cutting feed rate [mm/min (inch/min)] | Cutting feed rate [mm/min (inch/min)] | X, Y, Z axis: 1 - 30,000 |
| Feed rate | Indexing feed rate (B) [min-1] | Indexing feed rate (B) [min-1] | 100（85 *10) |
| ATC unit | Tool shank type | Tool shank type | MAS-BT30 |
| ATC unit | Pull stud type*4 | Pull stud type*4 | MAS-P30T-2 |
| ATC unit | Tool storage capacity [pcs.] | Tool storage capacity [pcs.] | 30 |
| ATC unit | Max.tool length [mm (inch)] | Max.tool length [mm (inch)] | 250 |
| ATC unit | Max.tool diameter [mm (inch)] | Max.tool diameter [mm (inch)] | 125 |
| ATC unit | Max.tool weight [kg (lbs)]*1 | Max.tool weight [kg (lbs)]*1 | 4.0 / tool, (TOTAL TOOL WEIGHT: 50 (110.2)) |
| ATC unit | Tool selection method | Tool selection method | Random shortcut method |
| Tool change time *5 | Tool To Tool [sec.] | Tool To Tool [sec.] | 1.3 *14 |
| Tool change time *5 | Chip To Chip [sec.] | Chip To Chip [sec.] | 2.7 *14 |
| Electric motor | Main spindle motor (10 min/continuous)[kW] *2 | Main spindle motor (10 min/continuous)[kW] *2 | 12,000min-1 specifications : 10.1/7.0 10,000min-1 high-torque specifications (optional):12.8/9.2 20,000min-1 specifications (Optional) : 7.4/5.1 |
| Electric motor | Axis feed motor [kW] | Axis feed motor [kW] | XZ axis: 1.0, Y axis: 1.8, B axis: 1.8 |
| Power source | Power supply | Power supply | AC 200 to 230 V±10%, 3-phase, 50/60Hz±2% |
| Power source | Power capacity (continuous) [kVA] | Power capacity (continuous) [kVA] | 10.4 |
| Power source | Air supply | Regular air pressure [MPa] | 0.4 - 0.6(recommended value : 0.5)*6 |
| Power source | Air supply | Required flow [L/min] | 45 |
| Machine dimensions | Height [mm (inch)] | Height [mm (inch)] | 2,497 |
| Machine dimensions | Required floor space*9 [with control unit door open] [mm (inch)] | Required floor space*9 [with control unit door open] [mm (inch)] | 1,557 x 2,743 [3,581] (61.3 x 108.0 [141.0]) |
| Machine dimensions | Weight [kg (lbs)] | Weight [kg (lbs)] | 2,850 |
| Accuracy*3 | Accuracy of bidirectional axis positioning | (ISO230-2:1988) | X, Y, Z axis: 0.006-0.020 mm (0.00024-0.00079 inch) |
| Accuracy*3 | Accuracy of bidirectional axis positioning | （ISO230-2:2014） | B axis: 28 sec or less |
| Accuracy*3 | Repeatability of bidirectional axis positioning (ISO230-2:2014) [mm (inch)] | Repeatability of bidirectional axis positioning (ISO230-2:2014) [mm (inch)] | X、Y、Z axis : Less than 0.004 mm (0.00016 inch), B axis: 16 sec or less |
| Standard accessories | Standard accessories | Standard accessories | Instruction Manual (DVD 1 set), leveling bolts (4 pcs.), leveling plate (4 pcs.) |
| CNC model | CNC model | CNC-D00 |
|---|---|---|
| Control axes | Control axes | 5 axes (X, Y, Z, 2 additional axes) |
| Simultaneously controlled axes | Positioning | 5 axes (X, Y, Z, 2 additional axes) |
| Simultaneously controlled axes | Interpolation | Linear: 4 axes (X, Y, Z, 1 additional axis) Circular : 2 axes Helical/Conical : 3 axes (X, Y, Z) |
| Least input increment | Least input increment | 0.001 mm, 0.0001 inch, 0.001 deg. 0.0001 mm, 0.00001 inch, 0.0001 deg. (optional) |
| Max.programmable dimension | Max.programmable dimension | ±999999.999 mm, ±99999.9999 inch ±999999.9999 mm, ±99999.99999 inch (optional) |
| Display | Display | 15-inch color LCD touch display |
| Memory capacity | Memory capacity | 500 Mbytes, 3 Gbytes (optional) (Total capacity of program and data bank) |
| External communication | External communication | USB memory interface, Ethernet, RS232C (optional) |
| No.of registrable programs | No.of registrable programs | 4,000 (Total capacity of program and data bank) |
| Program format | Program format | NC language*Conversational language not available |
| Operation | Operation | Dry run Machine lock Program restart Rapid traverse override Cutting feed override Background editing Screen shot Operation level External input signal key Shortcut keys < optional > Spindle override |
|---|---|---|
| Programming | Programming | Absolute / Incremental Inch / Metric Coordinate system setting Corner C / Corner R Rotational transformation Synchronized tap Subprogram Graphic display |
| Measurement | Measurement | Automatic workpiece measurement *1 Tool length measurement |
| High speed and high accuracy | High speed and high accuracy | Machining parameter adjustment High-accuracy mode AIII High-accuracy mode BI (look-ahead 160 blocks) Backlash compensation < optional > High accuracy mode BII (Look-ahead 1,000 blocks, smooth path offset) |
| Monitoring | Monitoring | Machining load monitoring ATC monitoring Overload prediction Waveform display / Waveform output to memory card Automatic thermal distortion compensation (X, Y, and Z axes) Production performance display Tool life / Spare tool Stuck chips detection function |
| Maintenance | Maintenance | Tap return function Status log Alarm log Operation log Maintenance notice Motor insulation resistance measurement Tool washing filter with filter clogging detection Battery-free encoder Breake load test |
| Automatic / Network | Automatic / Network | Computer remote OPC UA Auto notification Built-in PLC (LD/ST/FBD) < optional > CC-Link, master station CC-Link, remote device station PROFIBUS DP, slave DeviceNet, slave PROFINET, slave EtherNet/IP, slave |
| Energy saving | Energy saving | Automatic power off Standby mode Automatic coolant off Automatic work light off Chip shower off delay Chip shower energy savings operation Energy savings mode |
| Support apps | Support apps | Adjust machine parameters ATC tool Tool life Waveform display Production performance Energy saving/ Power consumption Recovery support Inspection PLC Machining support without warmup Software control panel |
| Accessories | Accessories | File viewer Notebook Calculator Register shortcut Display off |
| Functions limited to NC language | Functions limited to NC language | Menu programming Local coordinate system Expanded workpiece coordinate system One-way positioning Inverse time feed Programmable data input Tool length compensation Cutter compensation Scaling Mirror image External sub program call Macro Tape operation / FTP load operation Multiple skip function < optional > Submicron command Interrupt type macro Rotary fixture offset Fixture coordinates setting *1 Involute interpolation Vibration adjustment |
